Linking Tables

Linked Views is a feature in Deephaven that enables a user to interactively filter the content in one Deephaven table or plot based on the content selected in another Deephaven table.

To use Linked Views among tables or plots in the Deephaven console, the objects must first be "associated" to each other. One table is the source table and the other table is the target table or plot. When linking tables, a filter is applied to define the column in each table that should be linked. When a row in the source table is double clicked, the respective columns in the target table are filtered according to the filter parameters assigned during the linking process. Similarly, when a plot becomes the target of a link, the plot will instantly rechart its data according to the row clicked in the source table.

See also: Linking Plots

To link two tables in the Deephaven console, both tables must be open in your workspace. They can be in different panels or in multiple tabbed panel sets, but they must be open and available in the console.

Note: The examples shown below use data from the LearnDeephaven namespace, including the StockTrades, StockQuotes and EODTrades tables. The following query* can be used to recreate these tables in your own console:

from deephaven import *

StockTrades=db.t("LearnDeephaven", "StockTrades").where("Date=`2017-08-25`")
StockQuotes=db.t("LearnDeephaven", "StockQuotes").where("Date=`2017-08-25`")
EODTrades=db.t("LearnDeephaven","EODTrades").where("ImportDate=`2017-11-01`")

StockTrades=db.t("LearnDeephaven", "StockTrades").where("Date=`2017-08-25`")
StockQuotes=db.t("LearnDeephaven", "StockQuotes").where("Date=`2017-08-25`")
EODTrades=db.t("LearnDeephaven","EODTrades").where("ImportDate=`2017-11-01`")

* The query provided above assumes your system administrator has installed the tables noted and the LearnDeephaven namespace for your enterprise. Please contact your system administrator for further information.

The following example presents two tables that are nested side-by-side within the same panel. However, any tables in any panel in the console can be linked.

To initiate the linking process, right-click anywhere within the body of a table. The drop-down menu then presents options for Make Link To and Make Link From, as shown below:

When the Make Link To option is selected, the table initially selected (in this case, the StockTrades table on the left) becomes the "source" table and the cursor will change to a link icon with a down arrow.

Navigate to the target table in the Deephaven console and click anywhere in the body of the table to designate it as the "target" table (in this case, the StockQuotes table on the right). When you click in the target table, the Filter Editor will open as shown below. Also, the background colors of the tables' tabs will change to signify the source and the target.

When the Make Link From option is selected, the first table selected becomes the "target" table, the cursor changes to a link icon with an up arrow, and the second table becomes the "source" table. However, the same Filter Editor opens after clicking the second table.

Adding Filter Parameters

Once both tables are selected, the Filter Editor window is used to assign the respective columns in each table that should be linked and how they should be filtered.

Click the + button located at the bottom left corner of the window to create a new filter. A new row will be added to the panel. To change Filter Editor the column names, double-click a cell. You can then choose from the available options for Target Column, Operation and Source Column. Typing the first letter of a column name will cycle through matching columns; for example, typing "S" might cycle through Sym, Size, and SaleCondition.

Any column in each pair of tables may be linked, but the filter condition selected must be applicable to the data types found in both columns.

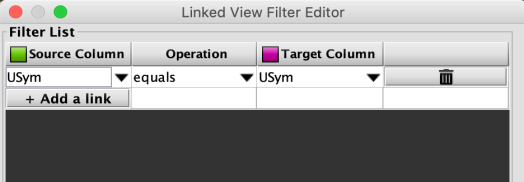

For example, if you wanted to link the tables based on the selection of one particular USym, you would select the USym column under the Target Column(s) heading and then select the USym column under the Source Column(s). Finally, select the equals option in the drop-down menu under Operation. These parameters are shown below.

The previous example shows only one pair of columns being linked.  However, multiple columns can be linked between a pair of tables. To add another filter set, click the + button again, and then select the columns and the filter condition. In the following example, the Last column is selected in the source table, the Bid column is selected in the target table, and a less than filter is selected for the Operation:

The combination of these two sets of parameters filter the target table to show content only when (a) the values in the USym columns of both tables match and (b) the value in the Bid column of the target table is greater than the value in the Last column of the source table.

Once you have added all your filter conditions, complete the linking process by clicking OK. The tables are now linked according to those parameters.

When a table has been designated as a source table, the tab for that table will show the link icon with an arrow pointing down. The tab for a table designated as a target table will show a link icon with an arrow pointing up. If a table is used as both a source table and a target table, the link icon will have one up arrow and one down arrow. See below.

Source Table

Target Table

Source & Target Table

Attempt to Match Columns

The following features may be turned on or off using the Attempt to Match Columns checkbox:

  • Link Column Matching - When you create a new link, the dialog will attempt to set the pull down menus so that the Source column is the same as the first match in the Target columns. If no match is found, they default to the first value of each.
  • Match Source Column to Target Column/Match Target Column to Source Column - When you change the Source or Target column, the dialog will attempt to set the corresponding column to match. In other words, if the Source is set to USym, the Target column will automatically change to USym, and vice versa. If no match is found, it is left alone.

Your on/off selection is saved in the workspace, and all dialogs that open in a new Deephaven session with remain in the last used state.

Autopopulate Links

The Autopopulate Links button will populate the Linked View Filter Editor with matching sets of source and target columns, as shown below:

Filtering the Target Table

When a row in the source table is double-clicked, the target table is filtered based on the parameters specified and the value(s) in the row of the source table that was double-clicked.

For example, in the screenshot below, the highlighted row in the StockTrades (source) table has AAPL as the USym value and 159.7400 as the value in the Last column.

When that row is double-clicked, the StockQuotes (target) table is immediately filtered to show (a) only those rows with AAPL in the USym column and (b) only those rows where the value in the Bid column is greater than 159.7400.

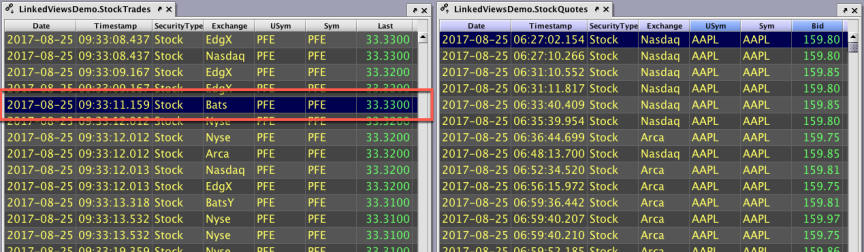

If we click on a row with a different USym in the source table, the target table will then be filtered again. For example, in the screenshot below, the highlighted row in the StockTrades table has PFE as the USym value and 33.3300 as the value in the Last column.

When that row is double-clicked, the StockQuotes table is immediately filtered to show (a) only those rows with PFE in the USym column and (b) only those rows when the value in the Bid column is greater than 33.3300. See below.

Edit or Remove Links

When a table is linked to another table, right-clicking in the body of either table body presents two additional options in the context menu: Remove All Links and Edit Links.

Selecting Remove All Links removes all links from the selected table to any other table(s). If any columns in the table have been previously filtered, those filters will remain activated. Note: Closing the table in the console also automatically removes any links.

Selecting Edit Links opens a dialog window that presents the filter parameters associated with the table selected. Filter parameters can be changed, added or deleted. If the selected table is linked to multiple other tables, tabs at the top of the window can be used to view/edit those other linked table filter parameters. The content in each tabbed panel is color coded to match the respective linked tables. The following screenshot shows the filter parameters for two table pairs - StockTrades & StockQuotes (in front), and EODTrades & StockQuotes (behind).

You can choose to Only Show Broken Links using the checkbox option in the Edit Links dialog.

Selecting the Replace Filters on Link Update checkbox will clear all existing filters on Link Targets before applying applying filters from a link update. For example, let's say you have two sources linked to one target, and each source has different filter parameters configured. Filters from a previous link event from Source 1 would be cleared from the target before applying filters from a link event from Source 2.

Broken Links

There may be cases when your links become "broken" - for example, if columns in the table have changed. If a link event is triggered that cannot complete properly, Deephaven will prompt you to take action.

The Link Error dialog offers three options:

  • Ignore - Leave broken links. The error will reoccur when the user attempts to double click again.
  • Repair Links - This opens a special instance of the Link Editor (see below) that allows users to select a link to repair.
  • Break Links - Remove the broken link(s) entirely.

If you choose Repair Links, the following dialog will open with more details about the error and options to fix the issue:

Linking Multiple Tables

The Linked Views feature enables users to link multiple tables. However, each pair of tables (source and target) is linked individually.

Any table in the Deephaven console can be the source or target for any other table as long as there are no conflicts in the filter parameters selected for each table pair.

For example, assume there are six tables named t1, t2, t3, t4, t5 and t6, as shown in the image below. Links between tables are illustrated with arrows.

In the diagram above:

  • t1 is the source table for two target tables, t2 and t5.
  • t2 is a target table for t1, but it is also the source table for t3 and t6.
  • t3 is the source table for t4
  • t4, t5 and t6 exist only as target tables

Therefore, double-clicking on a row in t1 will filter t2 and t5. To filter additional tables in the sequence, you will then need to double-click a row in table t2, which will further filter t3 and t6. Finally, double-clicking in t3 will filter t4.

Careful attention needs to be taken when linking multiple tables. If certain column values have already been filtered out of a table, those values will not be available in subsequent targeted tables.

Also, if a column is deleted or renamed in a linked table, an error message will appear when the source table is double-clicked. If you select Edit Links for a table pair that includes a filter for a column that has been renamed or deleted, the Filter Editor panel will highlight the row containing the missing/changed column name.  For example, in the screenshot below, the column name (Volume2x) for the source table is missing:

Saving Linked Views

Saving linked views in your workspace is possible only if the source table and target table/plot are generated from a persistent query. Once you have established your links and set the filter parameters, click Save at the top of Deephaven console.

Linked views generated from persistent queries will remain linked and will reestablish themselves if queries are restarted for any reason or after closing and reopening Deephaven.
