Presenting Multiple Series in a Plot

Plotting Multiple Series in Chart

There are two ways to plot multiple series in a chart.

Using multiple individual plotting methods chained together
Using the plotBy group of methods

Multiple plot methods can be used within the same query to produce a chart with multiple series. An example follows:

t1 = db.t("LearnIris","StockTrades").where("Date=`2017-08-25`")

multiplePlot = plot("PFE", t1.where("USym = `PFE`"), "Timestamp", "Last")
   .plot("CSCO", t1.where("USym = `CSCO`"), "Timestamp", "Last")
   .plot("INTC", t1.where("USym = `INTC`"), "Timestamp", "Last")
   .plot("BAC", t1.where("USym = `BAC`"), "Timestamp", "Last")
   .show()

In this example, four individual plot methods are required to generate the plot.

The plotBy group of methods follows the same general syntax as their respective plotting methods. However, the plotBy methods include an additional argument that enables users to specify the grouping column to be used to plot multiple series. This greatly simplifies and shortens the query structure.

For example, the following query uses the plotBy() method to create the same chart as the previous query, but with far greater efficiency:

t1 = db.t("LearnIris","StockTrades").where("Date=`2017-08-25`")
t6=t1.where("USym in `PFE`,`CSCO`,`INTC`,`BAC`")

plotBySample = plotBy("Aug25", t6, "Timestamp", "Last", "USym").show()

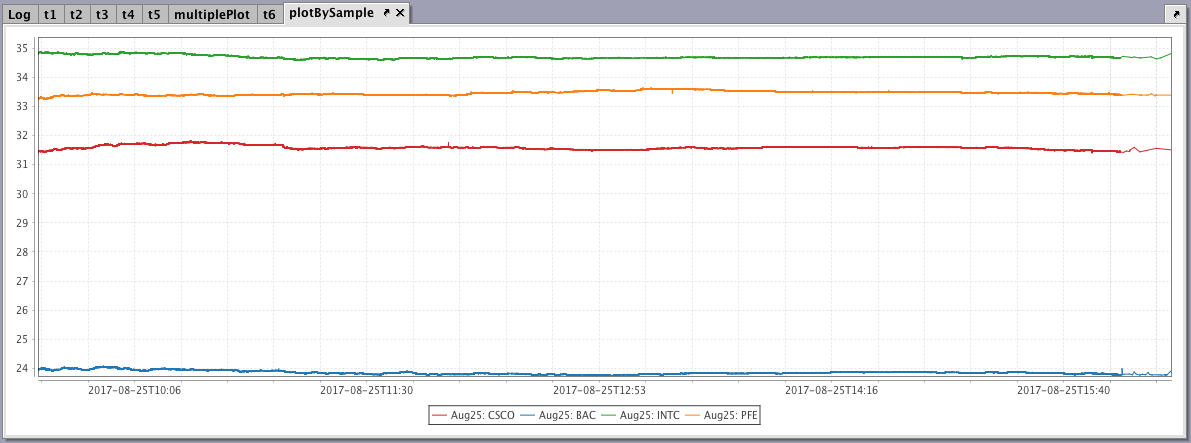

Only one table (t6) is generated by filtering the source table to contain information about all four USyms. Then, the plotBy method uses USym (the last argument) as the grouping column, which enables the plot to show data for the four USyms in the table, as shown below.

There are three versions of the plotBy methods. The plotBy, catPlotBy and ohlcPlotBy methods follow the same general syntax as the plot, catPlot and ohlcPlot methods, respectively. However, the additional argument enables users to specify the grouping column to be used to plot multiple series. The syntax for each method follows:

plotBy

plotBy("Series1", source, "xCol", "yCol", "groupByCol")

catPlotBy

catPlotBy("SeriesName", source, "CategoryCol", "ValueCol", "groupByCol")

ohlcPlotBy

ohlcPlotBy("SeriesName", source, "Time", "Open", "High", "Low", "Close" "groupByCol")
